Contact Us Audio-Technica AT-ART9XI Moving Coil Cartridge
ATART9XI
● Audio-Technica’s flagship magnetic core MC cartridge that replaced the world-class rated ART9
● Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
● Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
● Neodymium magnet and permendur yoke significantly increase magnetic energy
● Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)
● PCOCC coils ensure high-fidelity transmission
● Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
● Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
● Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
- Product Info
AUDIO-TECHNICA AT-ART9 MOVING COIL CARTRIDGE
Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. The specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback. The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response for clear sound localization and minimal distortion. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.
Comparative video

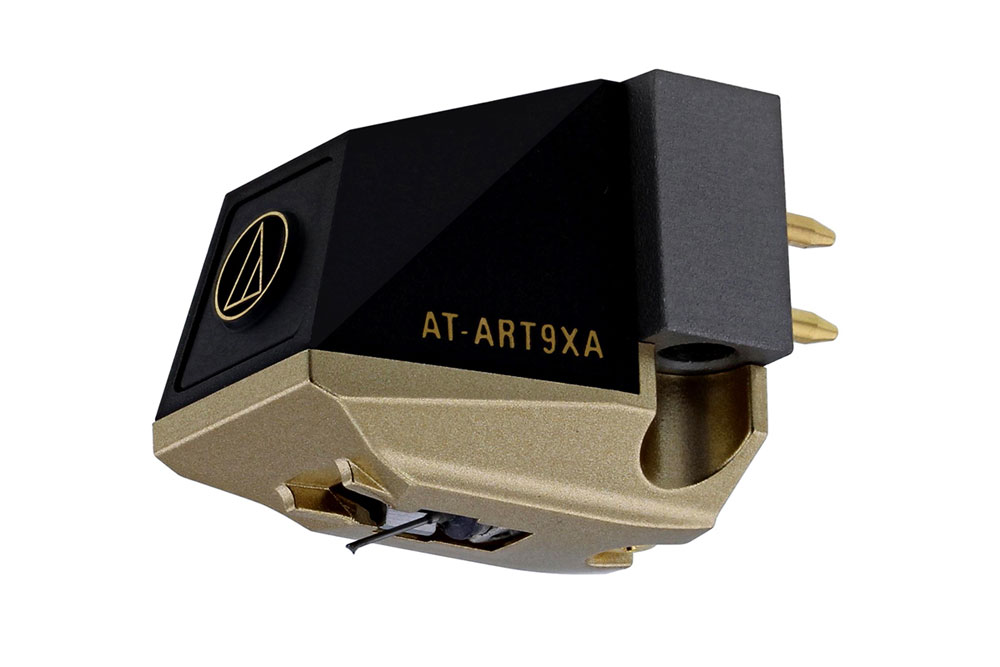

Audio-Technica AT-ART9 vs Audio-Technica AT-ART9XA vs Audio-Technica AT-ART9XI.- Specifications
- Specifications for AT-ART9XI
- Frequency Response 20-50,000 Hz
- Channel Separation 30 (dB at 1 kHz)
- Vertical Tracking Angle 20°
- Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
- Stylus Construction Nude
- Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
- Coil Impedance 12 ohms (1 kHz)
- DC Resistance 12 ohms
- Coil Inductance 25 µH (1 kHz)
- Output Voltage 0.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance 0.5 dB (1 kHz)
- Stylus Shape Special line contact
- Cantilever 0.28 mm diameter solid boron
- Static Compliance 25 x 10-6 cm/dyne
- Dynamic Compliance 15 x 10-6 cm/dyne (100 Hz)
- Mounting Half-inch
- Cartridge Weight 8.5 g (0.30 oz)
- Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
- Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
- Threaded Hole M2.6 x 2
Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
