LP Gear Audio-Technica AT120Eb SET

LP GEAR AUDIO TECHNICA AT120EB SET WITH HD HEADSHELL
- Audio-Technica AT120EB cartridge premounted on world class LP Gear HD Headshell

The LP Gear premounted Audio-Technica AT120Eb with High Definition (HD) Headshell offers superior sound quality and compatibility with turntables:
- LP GEAR® High-Definition half-inch mount headshell
- Aerospace alloy for tensile strength and low resonance
- SOAR HD5 headshell wires for exceptional sound quality
- Aligned length 52 mm for use with many tonearms
- Alignment adjustable for extra precision and compatibility
- Free alignment protractor
- Total weight of 16.0g with Audio-Technica AT120Eb is suited to more turntables and their tonearms. There is typically no need to change the counterweight.

Audio Technica AT120EB Phono Cartridge Specifications
-Type: VM type (Dual Magnet) stereo cartridge
- Output voltage: 4mV
- Frequency response: 20 ~ 25,000Hz
- Channel balance @ 1kHz: 1.0dB
- Channel separation @ 1kHz/10kHz: 28/20dB
- Tracking Force: 1.0 - 1.8g (1.4g standard)
- Coil Impedance: 3.2 kΩ (1kHz)
- Direct Current Resistance: 800 Ω
- Load Impedance: 47 kΩ
- Coil Inductance: 490 mH (1kHz)
- Load Cpacitance: 100 ~ 200pF
- Static Compliance: 35 x 10^-6cm/dyne
- Dynamic Compliance: 10 x 10^-6cm/dyne (100Hz)
- Stylus shape: 0.3 x 0.7 mil Nude Elliptical diamond
- Stylus construction: Nude round shank
- Cantilever: Aluminum pipe
- Vertical Tacking Angle: 20°
- Dimensions: H17.3 × W16 × D28.2 (mm)
- Weight: 6.5g

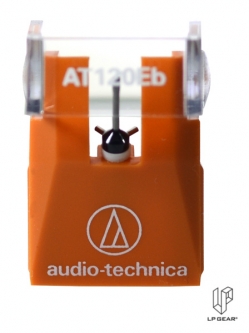

- Stylus replacement: Audio-Technica ATN120Eb
- Accessories included: Screwdriver, screws, nuts, headshell wires
