Audio-Technica ATS10/ATS12C stylus for Audio-Technica AT10 cartridge

AUDIO-TECHNICA ATS12C/ATS10 STYLUS FOR AUDIO-TECHNICA AT-10 AT10 CARTRIDGE

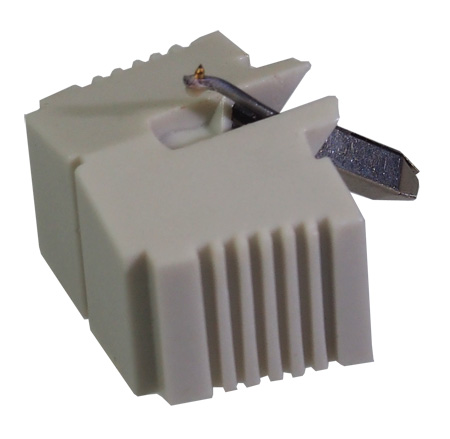

The Audio-Technica ATS-10 ATS10 needle stylus for the Audio-Technica AT-10 AT10 phono cartridge features a highly polished conical diamond for long playing and good rendition of voice and music. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Alternative Stylus
- Regular stylus: ATS10 Stylus
- Improved stylus: ATS11E Stylus
- Excellent stylus: ATS12VL Stylus
- Superior stylus: ATS12S Stylus

Audio-Technica AT10 Cartridge Specifications
- Generating element: VM Dual Moving Magnet
- Frequency response: 20 ~ 20,000 Hz
- Output voltage (at 1kHz, 5 cm/sec.): 4.8 mV
- Channel separation (dB 1 khz/10kHz): 25/15
- Channel balance (dB): 2.0 dB
- Stylus tip size (mils): .7
- Stylus assembly color: Red
- Tracking force: 2 ~ 3 g
- Vertical tracking angle: 20 °
- Load impedance (Ω): 47,000
- Cartridge inductance (mH): 1,000
- DC resistance (Ω): 1,200
- Dimensions: 0.63 × 1.14 × 0.79 inch
- Weight: 5.5 g
- Mounting: ½" centers
- Replacement stylus: ATS10

Notes: (1) Tracking force greater than the maximum indicated should not be used.
(2) Specifications for original Audio-Technica cartridge provided for reference only.
