LP Gear stylus for Audio-Technica LT101 (LT-101) cartridge

LP GEAR STYLUS FOR AUDIO-TECHNICA LT101 (LT-101) CARTRIDGE

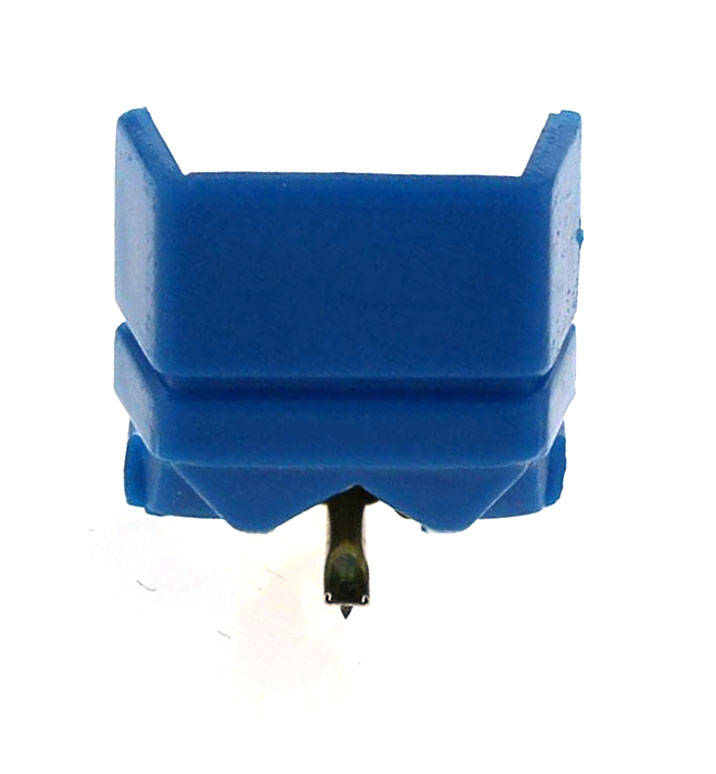

The LP Gear replacement needle stylus for the Audio-Technica LT-101 LT101 phono cartridge features a highly polished conical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Audio-Technica LT101 Specifications
- Type: VM Dual Magnet Stereo
- Playback frequency range: 15 ~ 25,000 Hz
- Output voltage: 5 mV (1kHz, 5 cm/sec.)
- Channel separation: 26 dB (1kHz)
- Channel separation: 17 dB (10kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.0 ~ 1.5 g
- Rec. load impedance: 47k Ω
- Stylus: Biradial 0.4 x 0.7 mil
- Stylus construction: Bonded
- Cantilever: Thin-wall
- Vertical tracking angle: 20°
- Dimensions: 16.2(H) × 10(W) × 35.2(L) mm
- Weight: 6 g
- Replacement Stylus: ATN5103

Note: Specifications are subject to change without notice.
