Contact Us LP Gear ATS12 stylus for Audio-Technica PRO12E cartridge
ATSPRO12E
● Fine quality ATS12 stylus for Audio-Technica PRO12E cartridge
● Better than original elliptical diamond for very high fidelity
● .0003 × .0007 inch radii for precision tracing accuracy
● Superbly engineered and exquisitely crafted in Japan
● Genuine, 100% authentic LP GEAR® stylus
- Product Info

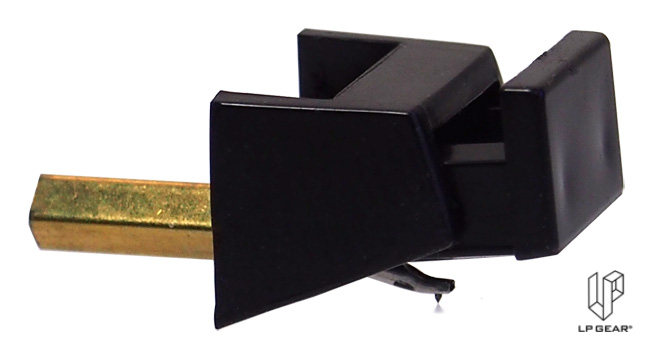

LP GEAR ATS12 STYLUS FOR AUDIO-TECHNICA PRO-12E PRO12E CARTRIDGE
- Genuine, super quality, made in Japan stylus replacementThe LP Gear ATS12 stylus is specified for the Audio-Technica PRO12E phono cartridge. It features a better than original highly polished elliptical diamond with a .0003 x .0007 inch radii and offers precise tracing of record grooves thus resulting in finer delineation of harmonics, very high accuracy and excellent musicality.
Upgrade Options
- For upgrade stylus and accessories that enhance sound quality and fidelity, refer to Related Products.Audio-Technica PRO12E cartridge specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 15 ~ 30,000 Hz
- Output voltage: 4.2 mV (5 cm/sec.)
- Channel separation: 22 dB (1kHz); 17 dB (10kHz)
- Channel balance: 2.0 dB (1kHz)
- Tracking force: 1.25 ~ 2.0 g
- Rec. input impedance: 47 kΩ
- Stylus: 0.4 x 0.7 mil
- Cantilever: Thin-wall tube
- Vertical tracking angle: 20 °
- Stylus assembly color: Blue
