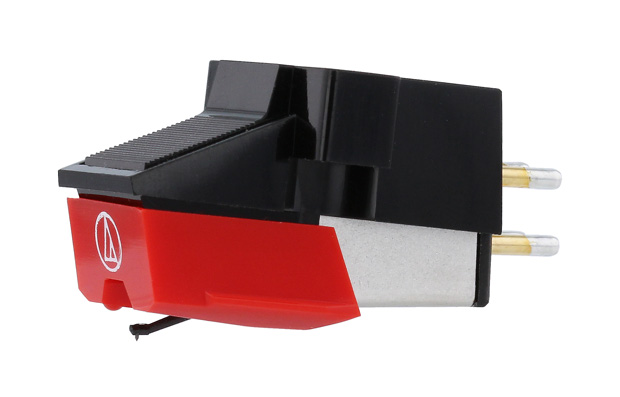

Audio-Technica VM750SH cartridge

AUDIO-TECHNICA VM750SH CARTRIDGE

Audio Technica's VM750SH phono cartridge with its Nude Shibata stylus is ideal for reproducing rich smooth ultra-high frequencies, and full-bodied mid and low frequencies. The VM750SH is furnished with a die-cast aluminum alloy housing which reduces vibration while adding a natural electrical shield.

Audio-Technica VM750SH cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude Shibata (2.7 × 0.26 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 8.0 g
- Replacment stylus: VMN50SH
- Accessories: Cartridge installtion screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1

Note: Specifications are subject to change without notice.
