Audio-Technica AT-VM95ML cartridge

IO-TECHNICA AT-VM95ML CARTRIDGE

his VM95ML cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same new body and engine the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Audio-Technica AT-VM95ML Cartridge Specifications
- Type: VM Stereo Dual Magnet
- Playback frequency range: 20 ~ 25,000 Hz
- Channel separation: 23 dB (1kHz)
- Output channel balance: 1.5 dB (1kHz)
- Output voltage: 3.5 mV (1kHz, 5 cm/sec.)
- Vertical tracking angle: 23°
- Tracking force range: 1.8-2.2g (standard 2.0g)
- Stylus shape: Microlinear nude
- Stylus size: 2.2 × 12.0 mil
- Stylus construction: Nude square shank
- Cantilever: Aluminum pipe
- Static compliance: 20 × 10^-6 cm/dyne
- Dynamic compliance: 7 × 10^-6 cm/dyne (100Hz)
- Wire used for coil: T.P. Copper
- Coil impedance: 3.3 kΩ (1kHz)
- DC resistance: 485 Ω
- Rec. load impedance: 100 Ω
- Rec. load capacitance: 100-200 pF
- Coil inductance: 550 μH (1kHz)
- Cartridge weight: 6.3 g
- Mounting: 2 x M2.6 threads/inserts, ½" spacing

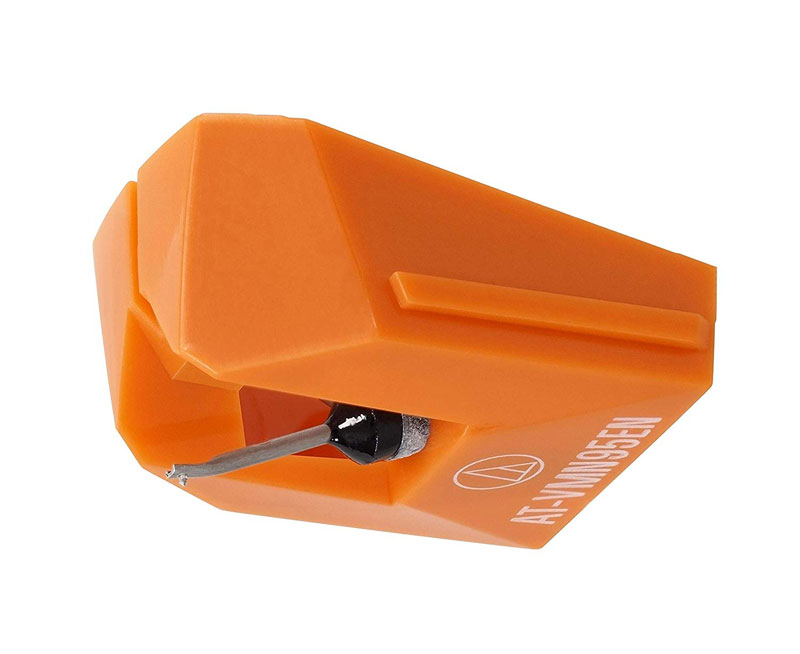

- Replacement stylus: AT-VMN95EN
- Accessories included: Two 11 mm installation screws; two 8 mm installation screws; two washers.
- Dimensions (H × W × D mm): 17.2 × 18.9 × 28.3

Notes: (1) T.P. Copper (or ETP grade copper, Electrolytic Tough Pitch cooper) is about 99.90% purity of copper and has excellent electrical and thermal conductivity. (2) Specifications subject to change without notice for improvements and design.
