Ortofon Stylus 510 MKII stylus
ORS510II- Product Info

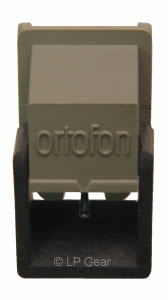

ORTOFON STYLUS 510 MKII STYLUS
The Ortofon Stylus 510 MKII stylus is the standard stylus replacement for the Ortofon 510 MKII phono cartridge. It is also compatible with the Ortofon 510, 520, 530 and 540 phono cartridges.
For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.
Ortofon Stylus 510 MKII Specifications
- Frequency range: 20Hz-23kHz
- Frequency response: 20Hz-kHz +/-2 dB
- FIM distortion @ recommended tracking force, DIN 45.542:< 1%
- Tracking ability @ 315Hz @ recommended tracking force: 70µm
- Compliance, dynamic, lateral: 25µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g (1.25-1.75mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black
