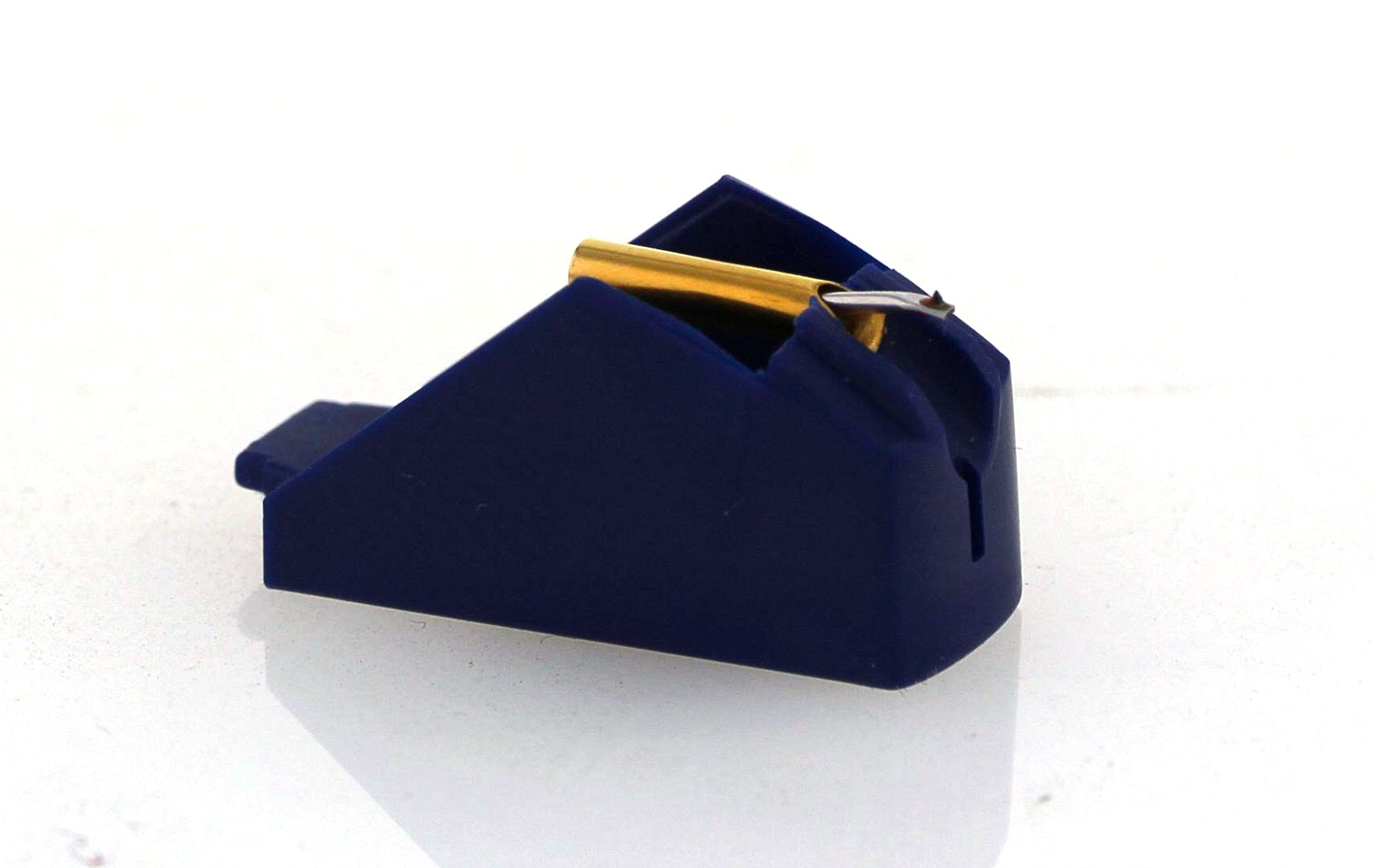

Contact Us EPS-30CS LP Gear stylus replacement for Panasonic Technics EPS30CS stylus
PAS030CS
● Highest quality, new EPS-30CS stylus for Technics EPC-P30 cartridge
● Sound quality and performance beyond current production substitutes
● Made by Japanese shokunin seeking perfection with each stylus
● 0.5 x 0.6 mil special conical diamond tip bonded to custom alloy cantilever
● Each stylus undergoes QC and listening test as final inspection
● LP GEAR® stylus - Above and beyond copies and generics
- Product Info
REPLACEMENT FOR PANASONIC TECHNICS EPS-30CS EPS30CS STYLUS
The LP Gear replacement for the Panasonic Technics EPS-30CS EPS30CS stylus is used with the Panasonic Technics EPC-P30 EPCP30 and P-30 P30 phono cartridges. The stylus features a highly polished conical diamond for long playing life and good rendition of voice and music.
Upgrade Options
- For upgrade stylus and accessories that enhance sound quality and fidelity, refer to Related Products.Technics EPC-P30 Cartridge Specifications
- Type: Plug-in connector type moving magnet
- Frequency response: 10-30,000 Hz
- Output voltage @ 1kHz,5cm/sec: 2.5 mV
- Channel separation @ 1kHz: 22
- Channel balance @ 1kHz: within 2 dB
- Compliance (dynamic): 12 x 10-6 cm/dyne at 100 Hz
- Tracking force: 1.25 ± 0.25g
- Net weight: 6 g cartridge only
- Optimum load resistance: 47 ~ 100 kΩ
- Replacement stylus: EPS-30CSNotes: (1) Tracking force greater than the maximum indicated should not be used.
(2) Specifications for original Technics cartridge provided for reference only.
