Contact Us LP Gear N3D Vivid Line stylus for Shure M3D cartridge
SHSM0003D
● Finest quality N3D stylus specified for Shure M3D cartridge
● Lifts cartridge to its highest performance surpassing other types available
● Special Vivid Line Contact diamond tip for exceptional fidelity
● r/R radii of 6/75 µm, bonded to a thin-wall alloy cantilever for tracing accuracy and reduced record wear
● Made by Japanese artisans, Shokunin in pursuit of perfection
● Tracking force: 3 ~ 6 g
● LP GEAR® stylus - Above and beyond copies, types, generics, and even originals
- Product Info

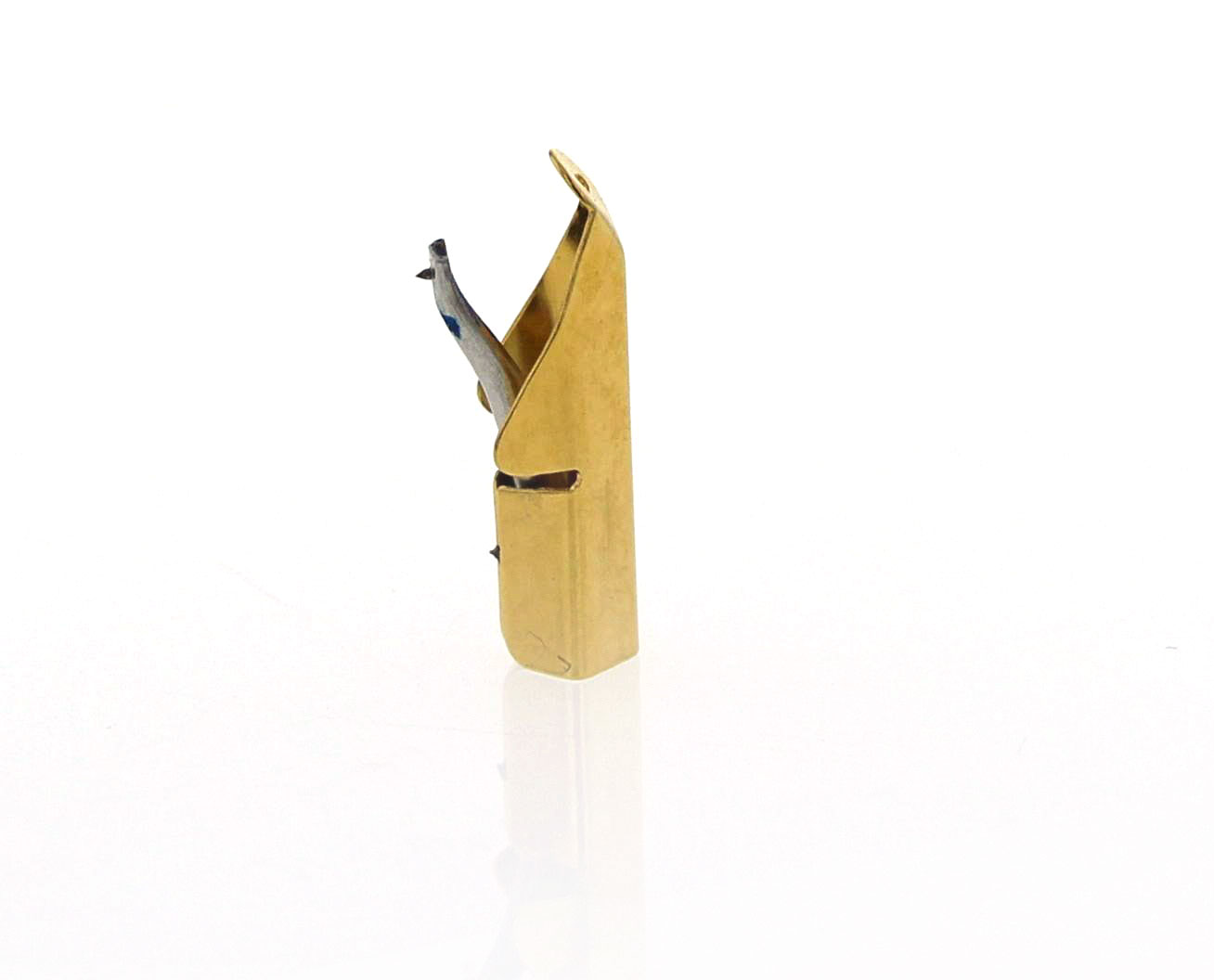

N3D VIVID LINE STYLUS FOR SHURE M3D CARTRIDGE
The N3D stylus is specified as the replacment stylus for the Shure M3D phono cartridge. The N3D Vivid Line features a highly polished Vivid Line Contact diamond that elevates the sound quality and performance of the cartridge that had been shackled by the limited and underachieving capability of the original Shure conical stylus. With the N3D Vivid Line, listeners will hear an inspired exuberance in musical reality gracefully coaxed from the record grooves - clarity, detail, dynamics, and air formerly missing from the cartridge. Welcome to the Vivid Line experience.
Shure M3D Cartridge Specifications
- Frequency response: 10 ~ 15,000 Hz
- Output voltage @ 1000Hz 5 cm/sec: 5 mV
- Channel separation @ 1000Hz: >20 dB
- Tracking force: 3 ~ 6 g
- Optimum load: 47 kΩ
- Inductance: 420 millihenries
- DC resistance: 280 Ω
- Compliance: 4.0 x 10-6 cm/dyne (100 Hz)
- Stylus: N3D, Spherical, Raidius 18 micros (.0007 in.)
- Net weight: 9.2 gNote: Specifications provided for reference only to original product.
