Contact Us LP Gear N55E Improved stylus for Shure M44E-GSL cartridge
SHSM0044EGSL
● Very high quality N55E Improved stylus for Shure M44E-GSL cartridge
● Made by Japanese shokunin seeking to create perfection with each stylus
● .0003 × .0007 inch radii for precision tracing accuracy
● Thin-wall alloy cantilever for firm and sensitive response to grooves
● Tracking Force: 0.75 to 1.5 grams
● LP GEAR® stylus - Above and beyond copies and generics
- Product Info

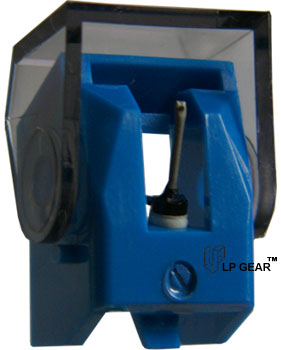

LP GEAR IMPROVED STYLUS FOR SHURE M44E-GSL CARTRIDGE
The LP Gear N55E Improved stylus for the Shure M44E-GSL cartridge features a highly polished .0003 x .0007 inch special elliptical diamond. It is bonded to a custom thin-wall alloy cantilever and offers highly accurate tracing of record grooves and natural sound quality. The original Shure N44E stylus was discontinued many years ago.
Shure M44E Cartridge Specifications
- Output voltage at 1000 Hz, 5cm/sec.: 6.2 mV
- Frequency response: 20-20,000 Hz
- Compliance, dynamic, lateral: 25 x 10-6
- Stylus type: Elliptical
- Stylus tip radius: .0004 x .0007 inch (10 x 18µ)
- Stylus replacement: N44E stylus
- Tracking force range: .75 - 2.0 g
- Internal impedance, DC resistance: 630 ohms
- Internal inductance: 720 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Cartridge color, body/stylus: Black/Brown
- Cartridge weight without screws: 6.7 gNote: Specifications provided for comparative reference only and subject to revision without notice.
Upgrade Stylus
- Upgrade stylus: N55VL stylus
- Ultimate upgrade stylus: Jico SAS N55E stylus
