Audio-Technica AT150SA phono cartridge

AUDIO-TECHNICA AT150SA AT-150SA AT 150SA PHONO CARTRIDGE

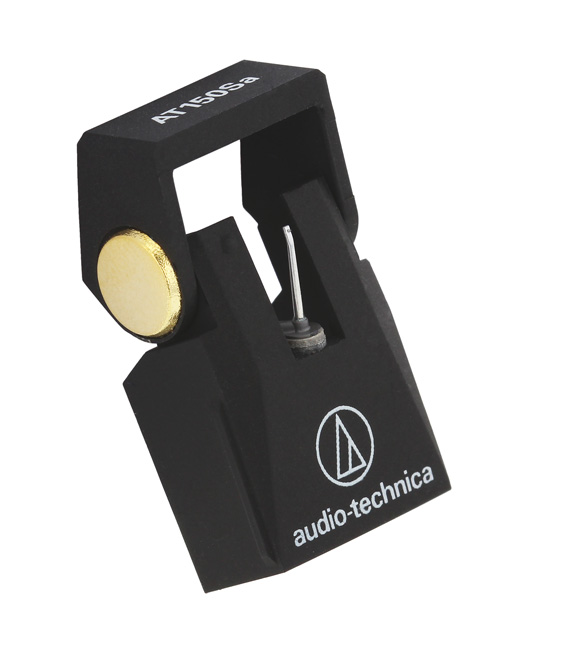

The progenitors of the new AT150SA, the AT150MLX and AT150ANV cartridges offer exceptional accuracy and for the AT150ANV - supreme fidelity. Within their celestial universe, the AT150SA with its Nude Shibata stylus also convey delicacy. Graced with a Nude Shibata stylus on a tapered pipe aluminum cantilever, the AT150SA through technical expertise and artisanship lifts from the record grooves sublime music. Music you'll want to keep enjoying.

Audio-Technica AT150SA cartridge specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 10 ~ 25,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.0 ~ 1.8 g (1.4 g standard)
- Coil impedance: 3.2 kΩ (1kHz)
- DC resistance: 800 Ω
- Rec. load impedance: 47 kΩ
- Coil inductance: 490 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude Shibata
- Cantilever: Aluminum, taper pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 8.0 g
- Accessories: Non-magnetic driver × 1, non-magnetic mounting screws 5mm × 2,8 mm × 2, PCOCC lead wires × 4, washer × 2, nut × 2, Brush × 1.

Note: Specifications are subject to change without notice.
