Audio-Technica VMN70SP stylus

AUDIO-TECHNICA VMN70SP stylus

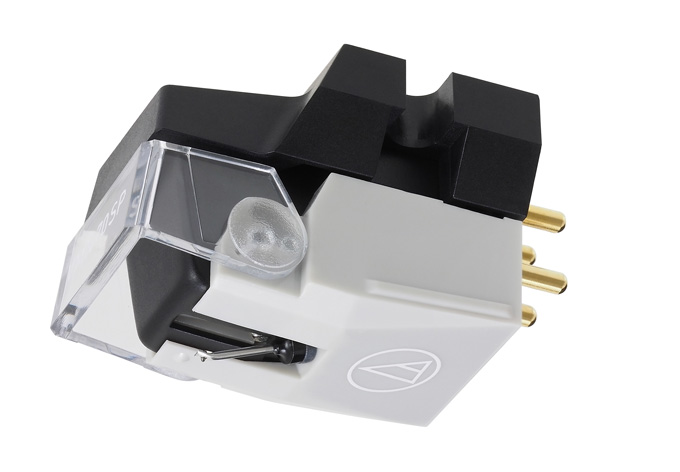

The VMN70SP is speficied as replacement stylus for the 78 RPM Audio-Technica VM-670SP cartridge and other cartridges within the series.

Audio-Technica VMN70SP stylus specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 3.0 mV (1kHz, 5 cm/sec.)
- Tracking force: 4.5 ~ 5.5 g (5.0 g standard)
- Static compliance: 15 × 10-6 cm/dyne
- Dynamic compliance: 2 × 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (3.0 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23 °

Note: Specifications are subject to change without notice.
